How to swap internal storage with the SD card in Android device

Lots of people are telling me to make a tutorial on swap internal storage with the SD card via comments. This is so simple process and I try to make most simple, easy and safe guide it. We saw many android phone give low phone memory error and we all want more free space on your Android phone storage for download large size games and install lots of apps. But we can’t do it because of low phone memory (space). In this case, you can swap your phone storage with an external SD card and resolve your low space problem.

In this swap internal storage with the SD card process, we want a rooted phone which has installed root file manage app like root explorer, ES file manager, etc. I am using root explorer app in this guide, it is a good root file manager app, but it’s paid app, if you don’t want to purchase this app then you can use any free root file manager app. According to my experience this process can’t brick your device. But safe side, you take a backup of your phone, then do it. And first read all steps, if you don’t understand these steps, then don’t do it and tell us your problem via comment, I will try to resolve your issues.

Must Read: How to turn on Do Not Disturb and Priority Interruption

swap-internal-storage-with-the-SD-card

Easy steps to swap internal storage with the SD card in your Android Device:

Step 1: We need a rooted phone for this process, if your phone is not rooted then first of all root your phone. You can find your phone root guide of this blog click here. After root your phone, install root file manager. You have two options: 1. Root file explorer app, click here (paid app) 2. Es file explorer file manager, click here (free app)

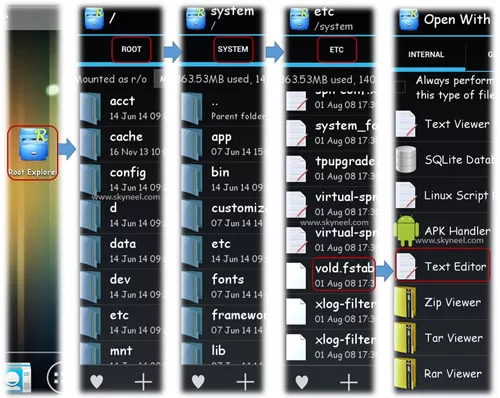

Step 2: Open the Root explorer app >>> then go to root folder >>> then find and tap on the system folder >>> Now you can see the ETC folder, open this folder >>> after then you will see a list of files and folder, Now find vold.fstab >>> tap on this file, you will get lot’s of option, now tap on text editor option. You can see all steps in this image.

swap-phone-storage-with-SD-card

Step 3: After tap on the text editor, you will get a popup tab from Su app for giving root permission to root explorer app >>> tap on the grant option >>> then you will get a warning message for remount as read-write then tap on yes. See in this image.

swap-phone-storage-with-the-SDcard

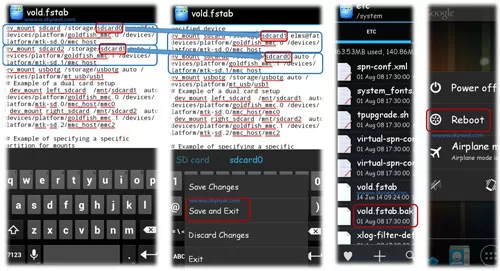

Step 4: Now vold.fstab file open for you, find these two line in this file:

dev_mount sdcard /storage/sdcard0 [email protected] /…………

dev_mount sdcard2 /storage/sdcard1 auto /…………….

You can see these lines in this image. Not much to do here, just change sdcard0 with sdcard1 in the first line and sdcard1 with sdcard0 in the second line >>> Now tap on the menu button in the phone >>> and tap on save and exit >>> close root file explorer app and reboot your phone or device. that’s all.

swap-phone-storage-with-extranal-SD-card

If you feel any problem in this swap internal storage with the SD card process and if you don’t find vold.fstab file or find blank vold.fstab file, then use this guide : Swap internal storage with the SD card in Android Lollipop and KitKat

Must Read: Increase internal memory in Android Mobiles in easy steps

Note: After swap internal storage with the SD card process, you will see two files 1. vold.fstab and 2. vold.fstab.bak in the root/system/etc folder. vold.fstab.bak is a backup of your vold.fstab file, if you feel any issue with your phone after this editing, then remove .bak in the name of your backup file and replace with your vold.fstab file.

I hope you like this swap internal storage with the SD card guide from which you will be able to easily swap internal storage with the SD card without any extra efforts. If feel any problem in this guide then please use comment box. Thanks to all.
