Root and Install CWM Recovery in Samsung Galaxy S Duos by Odin

Hi, This is a simple, safe and easy step by step tutorial to root and install CWM recovery in Samsung Galaxy S Duos with image guide. After root you can install custom Rom. Root and Install CWM Recovery in Samsung Galaxy S Duos with Odin Root Kit by easiest steps.  Samsung Galaxy S Duos Nice phone it and use without any restrictions.

Preparations of Root:

1. Take a backup of your phone.
2. Your phone battery should charge 80% minimum.
3. Make sure proper power backup of your PC.

Must Read: How to change Boot Animation in Android phone in easiest steps

Download Root tools:

File NameDownload link
Samsung Galaxy S Duos Odin ToolDownload
Samsung Galaxy S Duos USB DriverDownload
Samsung Galaxy S Duos CF-Auto-RootDownload
Samsung Galaxy S Duos CWM RecoveryDownload

How to install CWM recovery in Samsung Galaxy S Duos:

Step 1: Download and install your Phone USB driver on your PC. And Down load CWM recovery and copy on your SD card.

Step 2: Download Odin tool  Now extract Odin tool in a folder.

Odin

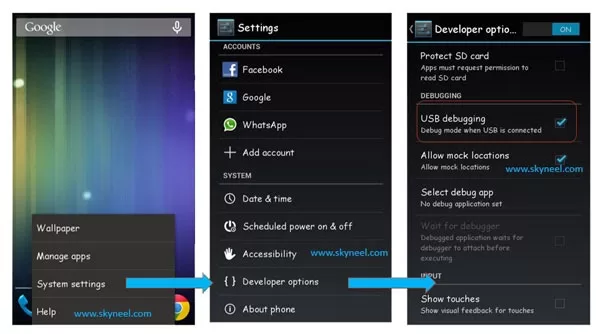

Step 3: Enable USB Debugging on your Phone. Go to Settings >>> Developer options >>> USB debugging check it ( If your phone have Android 4.2 or upper version then see how to enable Developer options here is guide of this Click here)

Enable-USB-Debugging

Step 3: Now Switch off your phone.

Switch-off

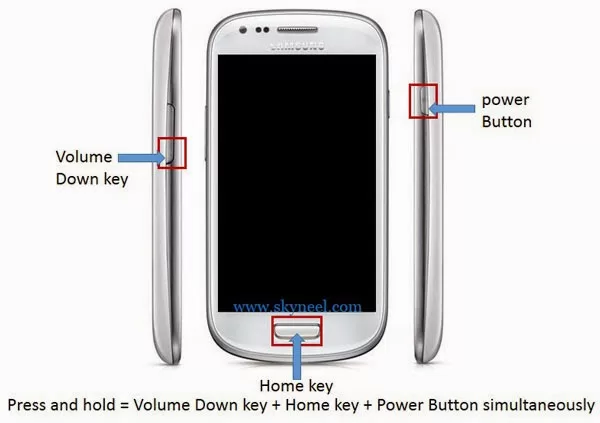

Step 4: Press and hold volume down key and home key with power button at the same time for 10 second maximum, see in this image.

Downloading-Mode

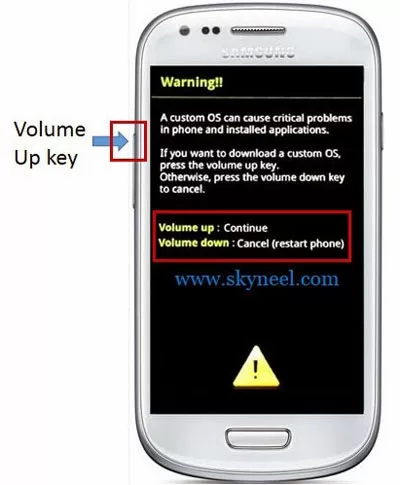

Step 5: You will see a warning message on your phone screen, press Volume up key to continue.

warning

Step 6: Now your phone entered in the Downloading Mode.

Downloading-Mode

Step 7: Double click on Odin3-v3.07.exe file and run Odin tool.

run-Odin-tool

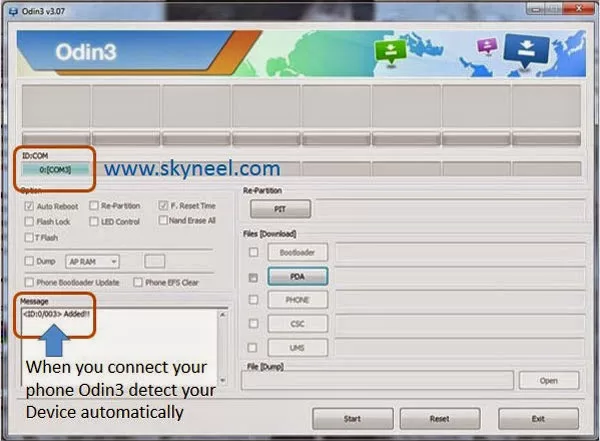

Step 7: Connect your phone to PC via USB cable, Odin detect your phone automatically and show com port and Added massage in massage box.

Added-massage

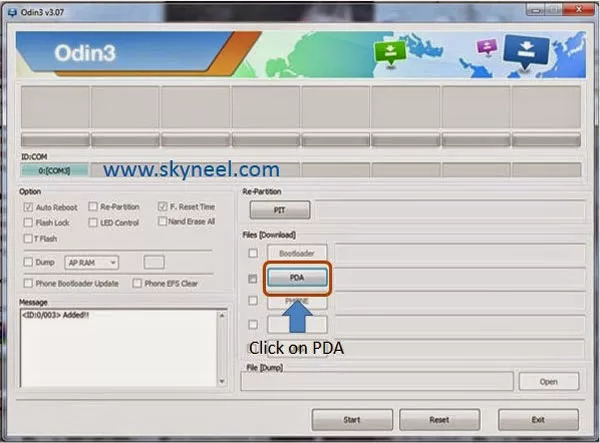

Step 8: Now click on PDA and select CMW recovery file

PAD

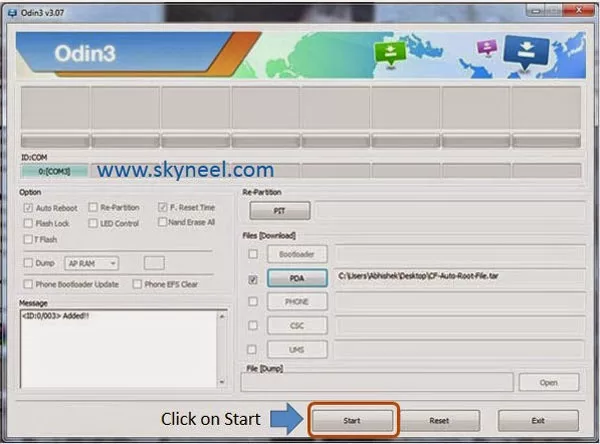

Step 9: Click on Start button

Start

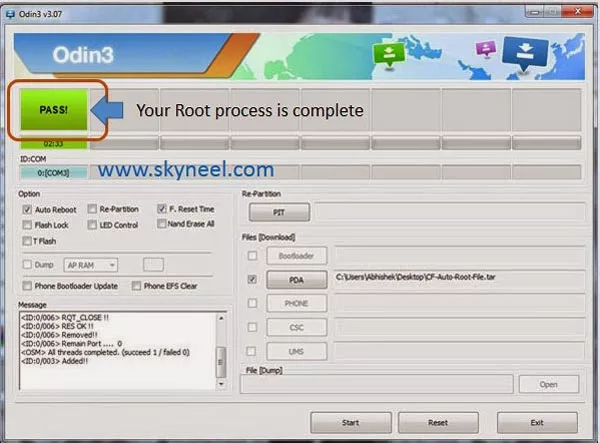

Step 10: CWM recovery process take few second to install recovery on your phone.When Installation process will complete then you will see green box in the Odin. see in the image.

root-your-phone

Step 11: In this process your phone automatically reboot and you will get a massage pass in the Odin. Now disconnect your phone and follow these step to install SU app and root your phone.

How to root Samsung Galaxy S Duos:

Step 12: Download UPDATE-SuperSU-v1.05.zip. file and copy downloaded file on your SD card.

Step 13: Turn off your phone, Press and hold volume down key and home key with power button at the same time for 10 second maximum for go to recovery mode, see in this image.

Downloading-Mode

Step 14: Select install zip from SD Card >>> Choose zip file from your SD Card >>> now select the “UPDATE-SuperSU-v1.05.zip” file and install it.

Step 15:  Now reboot your Phone. Enjoy rooted phone with custom recovery.

If you want check your phone is rooted or not then use this app click here

Must read: How to increase Internet speed upto 20% without Software

How to Unroot Samsung Galaxy S Duos:

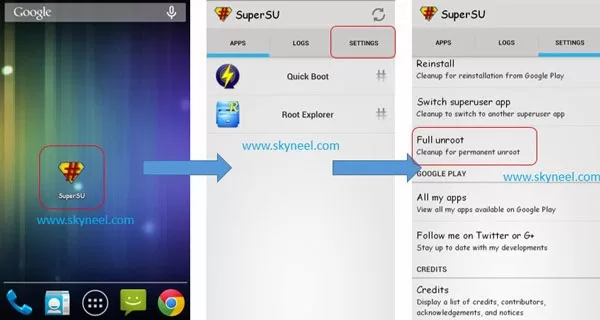

Open Su App >>> Setting >>> Full Unroot that’s all

Unroot-SU

Note: I am not responsible for any loss. Thanks and Credits : Chainfire

8 response on “Root and Install CWM Recovery in Samsung Galaxy S Duos by Odin

  1. sean

    I can’t did cmw recovery on Samsung s duos 3. May you give a link to download cmw recovery on Samsung s duos 3 sir…

    Reply
  2. Procopius

    I’ve tried this at least twenty times, and it isn’t working. I have a Samsung Galaxy S Duos, Model GT-S7582, running Android v. 4.2.2, Jelly Bean. I am using Odin 3.10.7, which has different labels but I’m selecting the second entry, the one labeled AP. Odin reports success, then the recovery installation of SuperSU 1.25 reports success, and when it reboots SuperSU is not listed among the apps and Root Checker says, “Sorry! Root access is not properly installed on this device.” This is terribly frustrating. Other tutorials give exactly the same directions you do, so I don’t know what is going wrong. Any suggestions?

    Reply
    1. Naresh Kumar

      hello procopius,

      then this process is successfully completed , now don’t reboot your device you just go to recovery mode and reboot .
      your phone is rooted enjoy.

      Reply
  3. Roshan shrestha

    Wao…nic post..♥
    But my one qoutions sir…?
    Why download this file (cf-auto-root)
