How to unbrick Xiaomi Redmi Note 3G easily

Hi, This is a safe and easy guide for unbrick Xiaomi Redmi Note 3G. So many peoples flash wrong recovery and custom roms on their Android device and result is bricked their devices. But it is not a matter of worry because here is a guide to Unbrick Xiaomi Redmi Note 3G for you.

This is first approved ROM of Xiaomi Redmi Note 3G Stock Rom MIUI 6. Xiaomi Redmi Note 3G has 1.7GHz Octa core processor along with 2GB RAM and 8GB ROM. This phone has 5.5 inches IPS screen size with 1280*720 pixels. This phone has 13 mega pixels rear camera with LED flash and 5MP front camera in Xiaomi Redmi Note 3G. After reading this article you will be able to get the answer of your question How to Unbrick Xiaomi Redmi Note 3G.

Preparation of flash or update:

1. Take a backup of your phone Click here.
2. Your phone battery should charge 80% minimum.
3. Read all steps then do it careful.
4. Make sure proper power backup of your PC.

Must Read: Swap internal storage with the SD card in Android Lollipop and KitKat

Download ROM and Tools of Xiaomi Redmi Note 3G:

FILE NAMEDOWNLOAD LINK
Xiaomi Redmi Note 3G Stock Rom MIUI 6Download
Xiaomi Redmi Note 3G SP Tool V5.1612Download
Xiaomi Redmi Note 3G USB DriverDownload

How to Unbrick Xiaomi Redmi Note 3G :

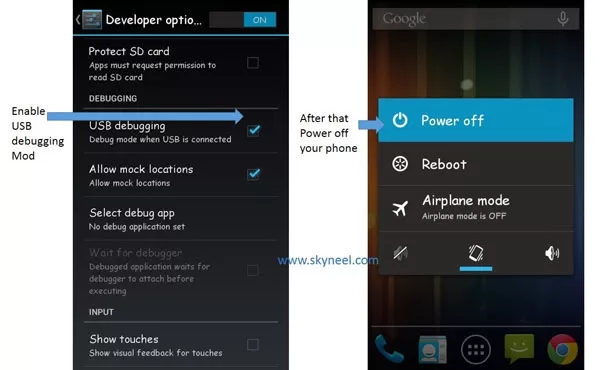

Step 1: Install drivers on your PC (If you feel any problem in install driver then watch this video click here)  and Enable USB Debugging on your Phone. Go to Settings >>> Developer options >>> USB debugging check it ( If your phone have Android 4.2 or upper version then see how to enable Developer options here is guide of this click here). After then switch off your phone.

Enable-USB-Debugging

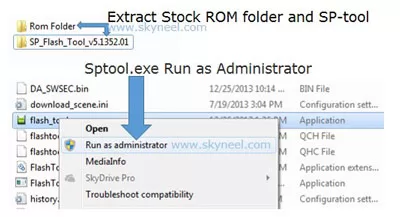

Step 2: Extract Stock ROM and SP Tool folder, where you want. Open the SP Tool and run Sptool.exe as Administrator.
Run-SP-Tool

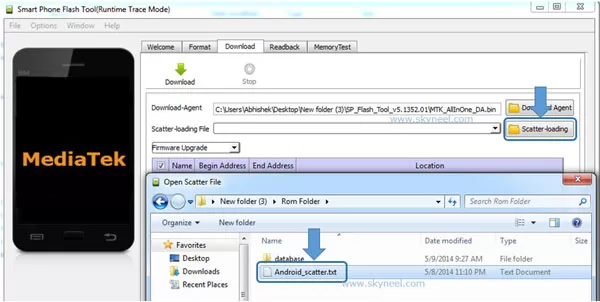

Step 3: Click on Scatter-Loading option. SPTool ask you the location of the scatter file in your PC. You will find it in the extracted Stock ROM folder. Now go to the Rom folder and select the file “MT6592_Android_scatter.txt” which is your stock Rom scatter file.
Click-on-Scatter-Loading-option

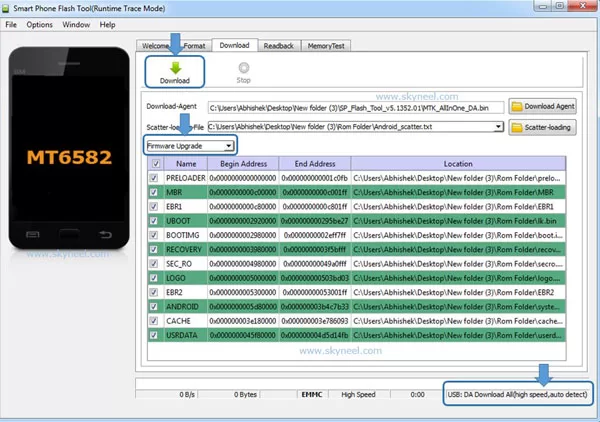

Step 4: Now Select firmware upgrade from dropdown menu then click on Download. And Connect your switch off phone with The PC via USB cable  (Make sure your phone is switched off).click-on-Download

Step 5: SP Tool auto-detect your phone and process will start. If Sptool is not recognize/detect your phone then install vcom driver read this post it will help you click here  (Driver already in phone flash drive if you don’t have these drivers then install it). After install Vcom driver connect your switched off phone with the PC. If you phone again not recognized by your SP Tool then try to flash via Meta mode flashing process, here is Meta-Mode flash guide click here.

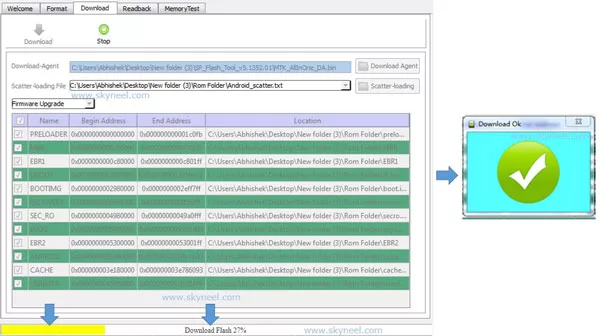

process-complete-green-ring-will-appear

Note: Don’t interrupt this process as it can potentially brick your device. Make sure no power interruption takes place.

Step 6: Now start downloading Stock Rom in your phone by flashing. After the process complete, a green ring will appear. Now disconnect your updated Smartphone. If you feel any problem of flashing or update your phone then watch this video click here.

Must Read: How to use screen pinning feature in Android Lollipop

After install Unbrick Xiaomi Redmi Note 3G, you can root your phone because root allows you to use a maximum of your phone without any restrictions. After root you will install custom apps, Rom and custom setting in your phone. But first read Root Advantage and Disadvantage by this article, then here is a root guide: How to root Xiaomi Redmi Note 3G MIUI 6.

I hope you like this Unbrick Xiaomi Redmi Note 3G Stock Rom MIUI 6 installation guide from which you will be able to easily Unbrick Xiaomi Redmi Note 3G Stock Rom MIUI 6 without any extra efforts. If feel any problem in this guide then please use comment box. Thanks to all.

Note: I am not responsible if you make Mistakes and Bricked Devices.

2 response on “How to unbrick Xiaomi Redmi Note 3G easily

  1. kittu

    Hi I am unable to get the Scatter file from yhr Stock ROm. Using mimu 7.3 and I get the error Sptool error 8417

    Reply
    1. Tanvi

      Hi Kittu,

      Solution: Open the scatter file in notepad or Notepad++, If there is anything else blow this then delete it and save the scatter file.

      ############################################################################################################## General Setting #

      Reply
